Body Temperature Monitoring Solutions

Improving safety for staff & visitors

With more organisations re-starting operations or opening facilities to staff or the public, solutions that will reduce the risk of spreading infections to increase safety for staff and visitors is crucial.

There are several options available for fever and corona virus detection, however, one key aspect is the ability to deploy a solution quickly and easily, even without the need of third-party implementation onsite.

Body Temperature Monitoring Devices

Watch Temperature Scanner in Action

We found working with ANT Telecom really easy. They understood what we were after from the very beginning and made the perfect solution for us. An unobtrusive instrument that adds an extra layer of security making our customers feel safe and ready to come back.

- Ross Hunt, Co-Owner at Lata Lata

We’ve made a range of changes in light of the pandemic to ensure that weddings can continue as planned and we’re pleased to offer couples this extra layer of safety alongside other measures. The temperature monitoring cameras allow us to protect all of our guests and staff right from the entrance of the venue. This is one of our key initiatives, and on top of this our exclusive venue model means venues can be completely sanitised between events and essentially acts as a private home for the couple, unlike hotel venues which have other people and staff entering and leaving the site.

- Sam Cutmore-Scott, Managing Director at Bijou Wedding Venues

Thermal Monitoring Terminal

  • Access control & temperature monitoring solution
  • Rapid deployment; plug & play
  • Supporting fast temperature measurement
  • For indoor use (10-45°C ambient temperature, no wind) e.g. at building
    entrances

Technical Specification

Thermal Monitoring Terminal - Technical Specification

  • Temperature range: 30-45°C
  • Accuracy: ±0.3°C
  • Mask detection: supporting face mask wearing alert and forced mask wearing alert
  • Authentication distance: 0.3 - 2m
  • 7-inch LCD touch screen - 2 megapixel wide-angle lens
  • Includes power supply
Close Window

Thermal Image Camera

Alternatively, a separate fever detection camera system mounted on a wall or tripod can be provided

The camera is connected via a cable to a pre-programmed workstation. This option allows detection of multiple people at the same time and can also be supplied to site without the need of onsite installation.

  • Access control & temperature monitoring solution
  • Easy implementation
  • Supporting fast temperature measurement
  • For indoor use (10-45°C ambient temperature, no wind)
  • e.g. at building entrances

Technical Specification

Thermal Image Camera - Technical Specification

  • Vandium Oxide (VOx) uncooled thermal sensor technology
  • 256 x 192 pixel thermal image resolution (other options available)
  • Optical image and thermal image are superimposed on each other bi-spectrally
  • Temperature range: 30-45°C
  • Accuracy of ±0.3°C at ambient temperature of 10-35°C with blackbody
  • Installation height: 2
  • Optical distance for measurement: 3m or 2m with blackbody
  • Horizontal viewing angle: 50° or 25°
  • Mask detection: supporting face mask wearing alert and forced mask wearing alert
  • Includes power supply (PoE).
Close Window

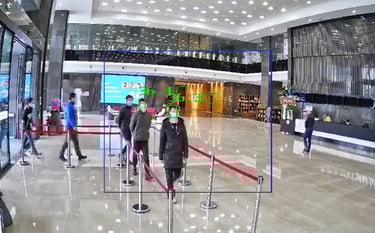

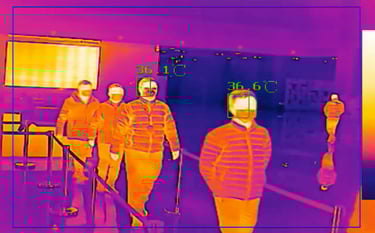

Workstation Screen

The pictures above show the workstation screen with the optical image and thermal image superimposed bi-spectrally.

Download your free temperature monitoring guide

Fill in the form below to download. If you any other questions, don't hesitate to contact us.
